| Technical Specifications - Dimensions / Weights |

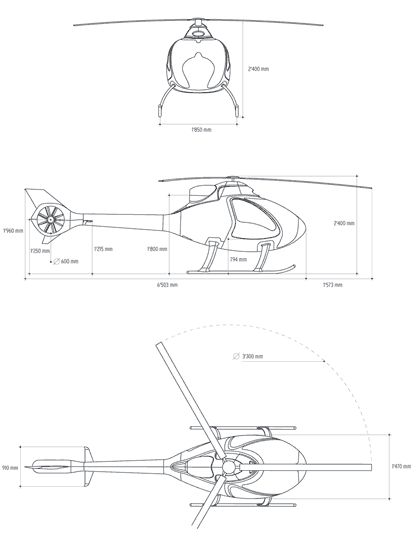

| Dimensions |
|
| Length (without rotor) |
|
6.5 m |
|
21.4 ft |
| Length (with rotor) |
|
8.0 m |
|
26.3 ft |
| Rotor diameter |
|
6.6 m |
|
19.7 ft |
| Tail rotor diameter |
|
0.6 m |
|
2.0 ft |
| Height |
|
2.4 m |
|
7.9 ft |
| Width cockpit |
|
1.47 m |
|
4.8 ft |
| Width landing gear |
|
1.85 m |
|
6.1 ft |
|
| Weights |
|
| Maximum take-off weight |
|
670 kg |
|
1477 lb |
| Empty weight standard aircraft |
|
305 kg |
|
672 lb |
| Fuel capacity 200lt - 53 US gal |
|
158 kg |
|
349 lb |
| Total payload with full fuel |
|
207 kg |
|
456 lb |
|
|
|
|
|
|
|
|
|
